Custom Printing Available. We can custom print your Company Name and Phone Number on orders of 25,000 ft and more per line. This adds a custom look to your product and drives repeat customers back to your company.

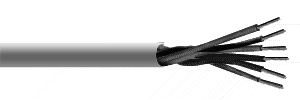

Thermostat cable may be used for many applications including: thermostat control, burglar alarms, intercom systems, bell systems, signal systems, heating & air conditioning installations, touch-plate systems, door bells, remote control units and low voltage installations.
Specifications
| Temp Range, Operating | -20ºC To +105ºC |
|---|---|
| Temp Rating, UL | 105ºC |
| Voltage, Max. Operating | 150 V RMS |
| SKU | CVT-200103 |
| Manufacturer | IWC Approved |
| CEC/C(UL) Specification | CMG |
| RoHS | Yes |
| EU CE Mark | Yes |
| NEC/(UL) Specification | CL2 |
| Weight | 16.0000 |
| Color | BROWN |
| Type | Non-Paired |
| Conductor Size (AWG) | 20 |
| Conductor Material | BC - Bare Copper |
| Number of Conductors | 3 |
| Conductor Stranding | Solid |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation Wall Thickness | .008 |
| Insulation Wall Thickness (Metric) | .203 |
| Overall Nominal Diameter | 0.135 |
| Outer Jacket Material | PVC - Polyvinyl Chloride |
| Amount | 1 ft |
| Overall Cabling - Overall Nominal Diameter (Metric) | 3.43 |
