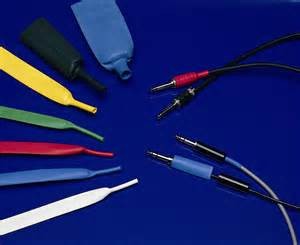

Sumitube® B2 Polyolefin Heat Shrinkable Tubing 2:1

Sumitube® B2 Polyolefin Heat Shrinkable Tubing 2:1

HSB2-0500-SP-2

Double click on above image to view full picture

More Views

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Qty:

| Add to Compare

Quick Overview

1/2" Polyolefin Tubing, Shrink Temperature 90°C, Spooled, RED

Details
Download Datasheet

Sumitube® B2 Heat Shrinkable Tubing is recommended for use in general purpose applications such as wire marking, color coding, and electrical insulation of light wire harness assemblies.

Specifications

SKU	HSB2-0500-SP-2
Manufacturer	Sumitomo
Mfr. Part No	B2-1/2-Red-S
Type	Enclosures
Military Specification	AMS-DTL-23053/5 Class 1 and 3
Shrink Temperature	110°C
Continuous Use Temp	-55° to 135°C
Weight	0.0000
Insulation Material	PO - Polyolefin
Size	1/2
Min. Expanded ID (in)	.500
Recovered Wall Thickness (in)	.025
Max Recovered ID (in)	.250
Color	RED

Sumitube® B2 Polyolefin Heat Shrinkable Tubing 2:1 (HSB2-0500-SP-2) Datasheet

Sumitube® B2 Heat Shrinkable Tubing is recommended for use in general purpose applications such as wire marking, color coding, and electrical insulation of light wire harness assemblies.     <h2>Specifications</h2>
