SUMITUBE® B2 (3X) Polyolefin Heat Shrinkable Tubing 3:1

SUMITUBE® B2 (3X) Polyolefin Heat Shrinkable Tubing 3:1

HSB2(3X)-18/6-SP-2

Double click on above image to view full picture

More Views

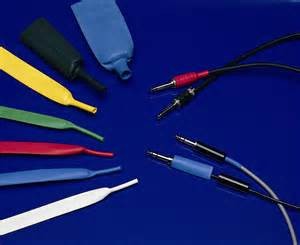

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Qty:

| Add to Compare

Quick Overview

18/6 MM Flexible Polyolefin Thin Wall Tubing, Spooled, RED

Details
Download Datasheet

Sumitube® B2(3X) Heat Shrinkable Tubing is recommended for use in general purpose applications for protection of components in light wire harness assemblies.

Specifications

SKU	HSB2(3X)-18/6-SP-2
Manufacturer	Sumitomo
Mfr. Part No	B2(3X)-18/6-Red-S
Type	Enclosures
Military Specification	AMS-DTL-23053/5 Class 1 and 3
Shrink Temperature	110°C
Continuous Use Temp	-55° to 135°C
Weight	0.0000
Insulation Material	PO - Polyolefin
Size	18/6 MM
Min. Expanded ID (in)	.709
Recovered Wall Thickness (in)	.039
Max Recovered ID (in)	.240
Color	RED

SUMITUBE® B2 (3X) Polyolefin Heat Shrinkable Tubing 3:1 (HSB2(3X)-18/6-SP-2) Datasheet

Sumitube® B2(3X) Heat Shrinkable Tubing is recommended for use in general purpose applications for protection of components in light wire harness assemblies.      <h2>Specifications</h2>
    <table class="data-table" id="product-attribute-specs-table">
        <col style="width:25%;" />
        <col />
        <tbody>
                	            <tr>
                <th class="label">SKU</th>
                <td class="data">HSB2(3X)-18/6-SP-2</td>
            </tr>
                            	            <tr>
                <th class="label">Manufacturer</th>
                <td class="data">Sumitomo</td>
            </tr>
                            	            <tr>
                <th class="label">Mfr. Part No</th>
                <td class="data">B2(3X)-18/6-Red-S</td>
            </tr>
                            	                	                	                	                	            <tr>
                <th class="label">Type</th>
                <td class="data">Enclosures</td>
            </tr>
                            	                	            <tr>
                <th class="label">Military Specification</th>
                <td class="data">AMS-DTL-23053/5 Class 1 and 3</td>
            </tr>
                            	                	                	                	            <tr>
                <th class="label">Shrink Temperature</th>
                <td class="data">110°C</td>
            </tr>
                            	            <tr>
                <th class="label">Continuous Use Temp</th>
                <td class="data">-55° to 135°C</td>
            </tr>
                            	            <tr>
                <th class="label">Weight</th>
                <td class="data">0.0000</td>
            </tr>
                            	                	                	                	                	                	                	            <tr>
                <th class="label">Insulation Material</th>
                <td class="data">PO - Polyolefin</td>
            </tr>
                            	                	                	                	                	                	                	                	                	                	                	                	                	                	                	                	                	            <tr>
                <th class="label">Size</th>
                <td class="data">18/6 MM</td>
            </tr>
                            	            <tr>
                <th class="label">Min. Expanded ID (in)</th>
                <td class="data">.709</td>
            </tr>
                            	            <tr>
                <th class="label">Recovered Wall Thickness (in)</th>
                <td class="data">.039</td>
            </tr>
                            	            <tr>
                <th class="label">Max Recovered ID (in)</th>
                <td class="data">.240</td>
            </tr>
                            	                	                	                	                	                	                	                	                	                	                	                	                	                	                	                	            <tr>
                <th class="label">Color</th>
                <td class="data">RED</td>
            </tr>
                            	                	                </tbody>
    </table>
