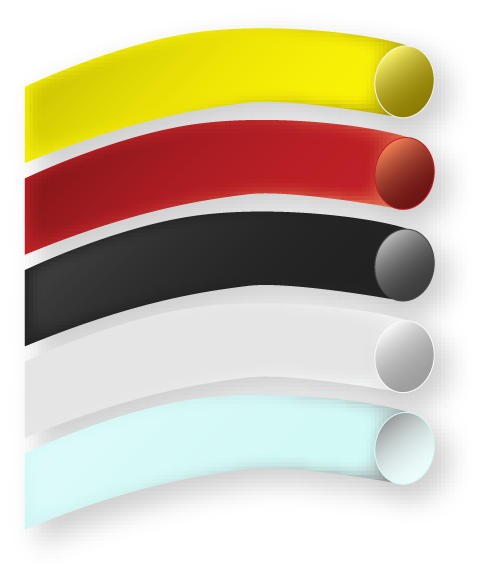

HS-105 PVC Heat Shrinkable Tubing is useful in applications requiring smooth, tight-fitting, aesthetic coverings; especially for products with irregular shapes. HS-105 is great for protecting products both indoors and outdoors: from UV light, fading, harsh chemicals, chlorinated cleansers, moisture, fungus, salt water, dirt, abrasion and splintering. HS-105 tubing provides see-through protection that will not become cloudy, yellow or crack with age. It is the preferred choice for use with PVC wire and cable. HS-105 provides insulation and strain relief for wire harnesses, terminals and wire splices. It offers outstanding dielectric and mechanical protection without damaging enclosed, underlying or adjacent components.
Specifications
| SKU | HSA-4000 |
|---|---|
| Manufacturer | IWC Approved |
| Type | Enclosures |
| CSA Specification | OFT |
| Military Specification | MIL-I-23053/2 |
| UL AWM Style | 224 |
| Dielectric Strength | 1,083 V/M |
| Shrink Temperature | 200°C |
| Continuous Use Temp | -20° to 105°C |
| Weight | 0.0000 |
| Insulation Material | PVC - Polyvinyl Chloride |
| Amount | 1 ft |
| Color | Black, White, Clear, Red and Yellow (Standard) |
| Min. Expanded ID (in) | 4.000 |
| Recovered Wall Thickness (in) | .073 |
| Max Recovered ID (in) | 2.000 |
| Fractional Size | 4 |
