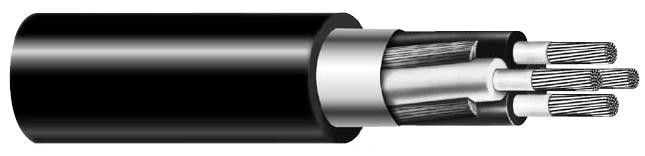

SOOW Carolprene® Service Cord - UL & CSA LISTED. Black 600V - Heavy Duty, Construction Copper: Bare soft annealed, Stranding per ASTM B-174. Insulation of inner conductors: Premium grade color coded 90°C EPDM, Temp. Range: -40°C to 90°C, Jacket: Black Carolprene®, Jacket marking: All sizes surface printed, showing gauge, number of conductors and type.
Specifications
| SKU | GC-02765 |
|---|---|
| Manufacturer | General Cable |
| Mfr. Part No | 02765 |
| Current, Max. Recomm. | 13 Amps |
| Voltage, Max. Operating | 600 V RMS |
| Temp Range, Operating | 90ºC |
| Type | Portable Cordage |
| Weight | 95.0000 |
| Color | BLACK |
| Conductor Size (AWG) | 16 |
| Conductor Material | BC - Bare Copper |
| Number of Conductors | 3 |
| Conductor Stranding | 26x30 |
| Insulation Material | EPDM - Ethylene Propylene Diene Monomer Rubber |
| Insulation Wall Thickness | .030 |
| Insulation Wall Thickness (Metric) | 0.76 |
| Overall Nominal Diameter | 0.390 |
| Outer Jacket Material | Carolprene® |
| Outer Shield Material | Unshielded |
| Amount | 1 ft |
| Overall Cabling - Overall Nominal Diameter (Metric) | 9.91 |
| CSA Specification | SOOW |
| RoHS | Yes |
| EU CE Mark | Yes |
| NEC/(UL) Specification | SOOW |
