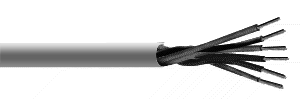

Non-Paired Wire - 18 AWG - Plenum Grade PVC - Polyvinyl Chloride Outer Jacket - 1 FT - 300 V RMS - WHITE

Non-Paired Wire - 18 AWG - Plenum Grade PVC - Polyvinyl Chloride Outer Jacket - 1 FT - 300 V RMS - WHITE

CPF-180706-C

Double click on above image to view full picture

More Views

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Qty:

| Add to Compare

RoHS Compliant

Quick Overview

6 Conductor #18 Stranded Bare Copper Plenum PVC Plenum PVC

Details
Download Datasheet

Plenum sound and security cable may be used in intercom/PA systems and sound/audio systems.

Specifications

Temp Range, Operating	-10ºC To +75ºC
Voltage, Max. Operating	300 V RMS
SKU	CPF-180706-C
Manufacturer	IWC Approved
CEC/C(UL) Specification	CMP
RoHS	Yes
NEC/(UL) Specification	FPLP
Plenum	Yes
Flame Test - UL Flame Test	NFPA 262 (UL 910)
Weight	0.0000
Color	WHITE
Type	Non-Paired
Conductor Size (AWG)	18
Conductor Material	BC - Bare Copper
Number of Conductors	6
Conductor Stranding	7x26
Insulation Material	Plenum Grade PVC - Polyvinyl Chloride
Insulation Wall Thickness	.007
Overall Nominal Diameter	0.208
Outer Jacket Wall Thickness	.014
Outer Jacket Material	Plenum Grade PVC - Polyvinyl Chloride
Amount	1 ft
