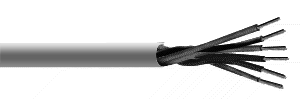

Non-Paired Wire - 16 AWG - PVC - Polyvinyl Chloride Outer Jacket - 1 FT - 300 V RMS (UL AWM Style 2464) - GRAY

Non-Paired Wire - 16 AWG - PVC - Polyvinyl Chloride Outer Jacket - 1 FT - 300 V RMS (UL AWM Style 2464) - GRAY

CVU-161905(GC)

Double click on above image to view full picture

More Views

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Qty:

| Add to Compare

RoHS Compliant

Quick Overview

5 #16 PVC UNSHLD PVC

Details
Download Datasheet

RS-232 Computer Interconnect, Control and Sound Cable

Specifications

Temp Range, Operating	-20ºC To +80ºC
Temp Rating, UL	80ºC (UL AWM Style 2464)
Capacitance	30.5
Voltage, Max. Operating	300 V RMS (UL AWM Style 2464)
SKU	CVU-161905(GC)
Manufacturer	IWC Approved
AWM Specification	UL Style 2464 (300 V 80ºC)
CEC/C(UL) Specification	CMG
RoHS	Yes
EU CE Mark	Yes
NEC/(UL) Specification	CM
Weight	0.0000
Color	GRAY
Type	Non-Paired
Conductor Size (AWG)	16
Conductor Material	TC - Tinned Copper
Number of Conductors	5
Conductor Stranding	19x.0117
Insulation Material	PVC - Polyvinyl Chloride
Insulation Wall Thickness	.021
Insulation Wall Thickness (Metric)	.53
Overall Nominal Diameter	0.334
Outer Jacket Wall Thickness	.032
Outer Jacket Material	PVC - Polyvinyl Chloride
Amount	1 ft
Overall Cabling - Overall Nominal Diameter (Metric)	8.48
Outer Jacket - Nom. Wall Thickness (Metric)	.81
