Non-Paired Wire - 12 AWG - PVC - Polyvinyl Chloride Outer Jacket - 1 FT - 600 V RMS (UL AWM Style 2587) - GRAY

Non-Paired Wire - 12 AWG - PVC - Polyvinyl Chloride Outer Jacket - 1 FT - 600 V RMS (UL AWM Style 2587) - GRAY

CVU-121902(GC)

Double click on above image to view full picture

More Views

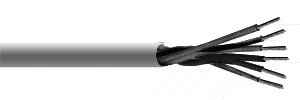

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Qty:

| Add to Compare

RoHS Compliant

Quick Overview

2 #12 PVC UNSHLD PVC

Details
Download Datasheet

RS-232 Computer Interconnect, Control and Sound Cable

Specifications

Temp Range, Operating	-20ºC To +90ºC
Temp Rating, UL	90ºC (UL AWM Style 2587)
Capacitance	31.000
Voltage, Max. Operating	600 V RMS (UL AWM Style 2587)
SKU	CVU-121902(GC)
Manufacturer	IWC Approved
AWM Specification	UL Style 2587 (600 V 90ºC)
CEC/C(UL) Specification	CMG
RoHS	Yes
EU CE Mark	Yes
NEC/(UL) Specification	CL3
Weight	0.0000
Color	GRAY
Type	Non-Paired
Conductor Size (AWG)	12
Conductor Material	TC - Tinned Copper
Number of Conductors	2
Conductor Stranding	19x.0185
Insulation Material	PVC - Polyvinyl Chloride
Insulation Wall Thickness	.032
Insulation Wall Thickness (Metric)	.81
Overall Nominal Diameter	.366
Outer Jacket Wall Thickness	.032
Outer Jacket Material	PVC - Polyvinyl Chloride
Amount	1 ft
Overall Cabling - Overall Nominal Diameter (Metric)	9.40
Outer Jacket - Nom. Wall Thickness (Metric)	.81
