Quabbin - Multiconductor PLTC - AWM 2464 - 22 AWG - 2 Conductor, Unshielded - PVC - Chrome Gray

Quabbin - Multiconductor PLTC - AWM 2464 - 22 AWG - 2 Conductor, Unshielded - PVC - Chrome Gray

Q-0130

Double click on above image to view full picture

More Views

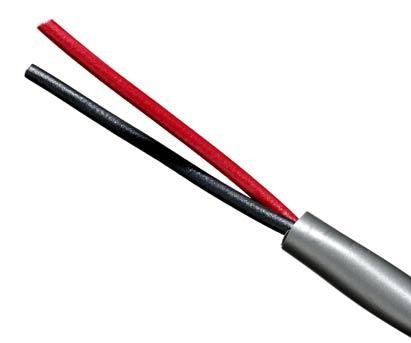

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Qty:

| Add to Compare

RoHS Compliant

Quick Overview

Quabbin Multiconductor PLTC, AWM 2464 – 22 AWG, 2 conductor, unshielded, PVC, Chrome Gray. CSA AWM FT4; CSA FAS 105 FT4; PLTC/ITC; RoHS Compliant.

Details
Download Datasheet

Quabbin Multiconductor PLTC, AWM 2464 – 22 AWG, 2 conductor, unshielded, PVC, Chrome Gray. CSA AWM FT4; CSA FAS 105 FT4; PLTC/ITC; RoHS Compliant.

Specifications

Temp Range, Operating	-20ºC To +105ºC
Capacitance	20
Voltage, Max. Operating	300 V
SKU	Q-0130
Manufacturer	Quabbin
AWM Specification	UL Style 2464 (300 V 105ÂºC)
RoHS	Yes
NEC/(UL) Specification	ITC^PLTC
Mfr. Part No	0130
Weight	18.9000
Color	CHROME
Conductor Size (AWG)	22
Conductor Material	TC - Tinned Copper
Conductor Diameter	.030
Number of Conductors	2
Conductor Stranding	7x30
Insulation Material	PVC - Polyvinyl Chloride
Insulation Wall Thickness	.016
Overall Nominal Diameter	0.2
Outer Jacket Wall Thickness	.038
Outer Jacket Material	PVC - Polyvinyl Chloride
