GenSPEED® 6 Category 6 Cable

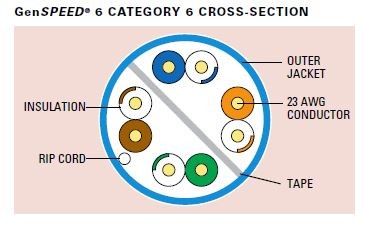

GenSPEED® 6 Category 6 Cable

CMR-230104-L6-5

Double click on above image to view full picture

More Views

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Qty:

| Add to Compare

RoHS Compliant

Quick Overview

23 AWG Solid Bare Copper, Polyolefin, Rip Cord, Flame-Retardant PVC, 1000 FT Pull-Pac® Green

Details
Download Datasheet

#23 4PR 350MHz CMR (Non-Plenum) 1000 FT Pull-Pac® 23 AWG Solid Bare Copper, Polyolefin, Rip Cord, Flame-Retardant PVC 1000 ft, Green

Specifications

Temp Range, Operating	-20ºC To +75ºC
Velocity of Propagation (%)	68
SKU	CMR-230104-L6-5
Manufacturer	General Cable
CEC/C(UL) Specification	CMR
RoHS	Yes
EU CE Mark	Yes
NEC/(UL) Specification	CMR
Mfr. Part No	7133806
Weight	28.0000
Color	GREEN
Type	Paired
Conductor Size (AWG)	23
Conductor Material	BC - Bare Copper
Number of Pairs	4
Conductor Stranding	Solid
Insulation Material	PO - Polyolefin
Overall Nominal Diameter	0.205
Outer Jacket Material	FR-PVC - Flame Retardant Polyvinyl Chloride
Outer Shield Material	Unshielded
Amount	1000 FT Pull-Pac® II

GenSPEED® 6 Category 6 Cable (CMR-230104-L6-5) Datasheet

#23 4PR 350MHz CMR (Non-Plenum) 1000 FT Pull-Pac®
23 AWG Solid Bare Copper, Polyolefin, Rip Cord, Flame-Retardant PVC
1000 ft, Green    <h2>Specifications</h2>
