Enclosures. Cable Management Wire - AWG - Polyolefin Outer Jacket - 4 FT (1.2 Meter) Lengths - 600 - BLACK

Enclosures. Cable Management Wire - AWG - Polyolefin Outer Jacket - 4 FT (1.2 Meter) Lengths - 600 - BLACK

SCL-0500-0

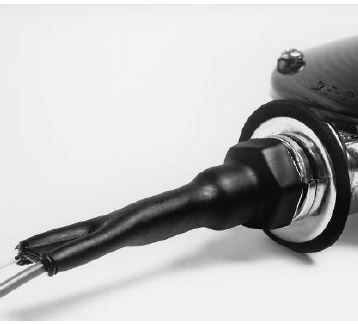

Double click on above image to view full picture

More Views

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Qty:

| Add to Compare

Quick Overview

SCL 1/2" Dual Wall Tubing Black

Details
Download Datasheet

AMS-DTL-23053/4 Class 1, Formerly MIL-I-23053/4 and MIL-DTL-23053/4

Specifications

SKU	SCL-0500-0
Manufacturer	IWC Approved
Type	Enclosures
Military Specification	AMS-DTL-23053/4
Voltage, Max. Operating	600
Shrink Temperature	257°F / 125°C
Continuous Use Temp	-67° to 230°F / -55° to 110°C
Weight	0.0000
Insulation Material	Polyolefin
Amount	4 FT (1.2 Meter) Lengths
Min. Expanded ID (mm)	12.7
Recovered Wall Thickness (mm)	1.39 ± 0.18
Min. Expanded ID (in)	.500
Recovered Wall Thickness (in)	.055 ± .007
Max Recovered ID (in)	.195
Max Recovered ID (mm)	5.0
Fractional Size	1/2
Color	BLACK

AMS-DTL-23053/4 Class 1, Formerly MIL-I-23053/4 and MIL-DTL-23053/4    <h2>Specifications</h2>
    <table class="data-table" id="product-attribute-specs-table">
        <col style="width:25%;" />
        <col />
        <tbody>
                	            <tr>
                <th class="label">SKU</th>
                <td class="data">SCL-0500-0</td>
            </tr>
                            	            <tr>
                <th class="label">Manufacturer</th>
                <td class="data">IWC Approved</td>
            </tr>
                            	                	                	                	                	                	            <tr>
                <th class="label">Type</th>
                <td class="data">Enclosures</td>
            </tr>
                            	                	            <tr>
                <th class="label">Military Specification</th>
                <td class="data">AMS-DTL-23053/4</td>
            </tr>
                            	                	            <tr>
                <th class="label">Voltage, Max. Operating</th>
                <td class="data">600</td>
            </tr>
                            	                	            <tr>
                <th class="label">Shrink Temperature</th>
                <td class="data">257°F / 125°C</td>
            </tr>
                            	            <tr>
                <th class="label">Continuous Use Temp</th>
                <td class="data">-67° to 230°F / -55° to 110°C</td>
            </tr>
                            	            <tr>
                <th class="label">Weight</th>
                <td class="data">0.0000</td>
            </tr>
                            	                	                	                	                	                	                	            <tr>
                <th class="label">Insulation Material</th>
                <td class="data">Polyolefin</td>
            </tr>
                            	            <tr>
                <th class="label">Amount</th>
                <td class="data">4 FT (1.2 Meter) Lengths</td>
            </tr>
                            	                	                	                	                	                	                	                	                	                	                	                	                	            <tr>
                <th class="label">Min. Expanded ID (mm)</th>
                <td class="data">12.7</td>
            </tr>
                            	            <tr>
                <th class="label">Recovered Wall Thickness (mm)</th>
                <td class="data">1.39 ± 0.18</td>
            </tr>
                            	                	                	            <tr>
                <th class="label">Min. Expanded ID (in)</th>
                <td class="data">.500</td>
            </tr>
                            	            <tr>
                <th class="label">Recovered Wall Thickness (in)</th>
                <td class="data">.055 ± .007</td>
            </tr>
                            	            <tr>
                <th class="label">Max Recovered ID (in)</th>
                <td class="data">.195</td>
            </tr>
                            	            <tr>
                <th class="label">Max Recovered ID (mm)</th>
                <td class="data">5.0</td>
            </tr>
                            	                	            <tr>
                <th class="label">Fractional Size</th>
                <td class="data">1/2</td>
            </tr>
                            	                	                	                	                	                	                	                	                	                	                	                	                	            <tr>
                <th class="label">Color</th>
                <td class="data">BLACK</td>
            </tr>
                            	                	                </tbody>
    </table>
